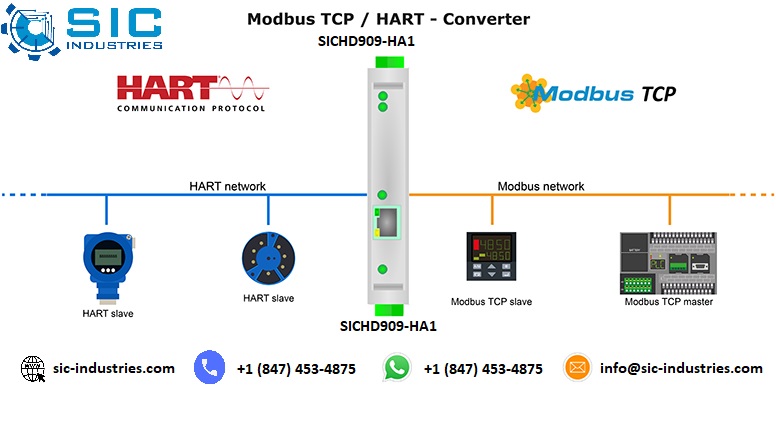

The SICHD909-HA1 are Modbus TCP / HART converters.
They allow to monitor HART devices (like Sensors, etc..) with a Modbus TCP net (like PLC, Supervisory System etc..).
On the HART side, the SICHD909-HA1 can manage up to 15 deivces (+1 Secondary Master).
SICHD909-HA1supports HART FSK.
SICHD909-HA1 can be used like Primary HART Master or like Secondary HART Master.
For informations about Modbus / HART converters
feel free to call us at +1 (847) 453-4875
Description
| Specifications: | |
| Ports: | 1xEthernet; 1xHART;; |
| Ethernet protocol | Modbus TCP Slave |
| HART protocol | HART FSK Master + 4..20mA Analog Input |
| Data rates Modbus TCP | 10/100 Base-T Autosensing |
| Data rates HART | 1200bps |
| Modbus TCP Connector | RJ45 |
| HART Connector | 2way 5mm terminal block |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 8..24V AC; 12..35V DC |
| HART Power Supply | Additional power supply 24 V DC for HART devices |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

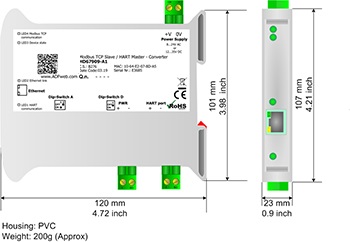

| Dimensions | 120x23x107 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
